Name: DIG-DOG DSL30 - Mini Skid Steer Loader
Brand: DIG‑DOG | Versatile Compact Excavators & Loaders for Tough Jobs
SKU: DSL30
Availability: InStock
Rating: 5 (1 reviews)

Description

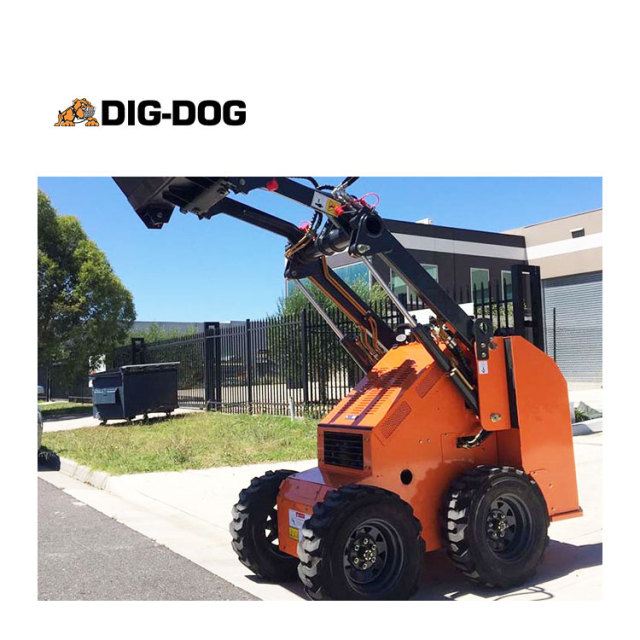

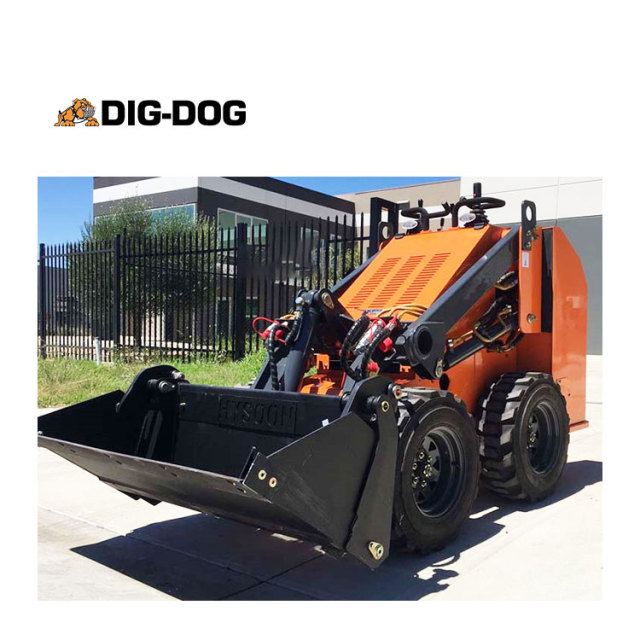

DIG-DOG DSL30 Walk-behind Mini Skid Steer For Sale

The DIG-DOG DSL30 Mini Skid Steer, weighing 1400 kg, delivers precise material handling with a compact 800mm width. Designed by expert skid loader manufacturers, it ensures versatile lifting and four-wheel-drive traction.

Product Description

Functional Positioning for Compact Material Handling
The DIG-DOG DSL30 Mini Skid Steer is engineered for contractors and operators requiring maneuverability in space-constrained environments. Its ultra-compact size and walk-behind design provide exceptional access where larger machines cannot operate efficiently. As a product developed by specialized mini loader manufacturers, it targets small to medium construction sites, landscaping firms, and facility maintenance teams. The dual operation modes allow operators with varying experience levels to control the unit safely and effectively. Overall, this mini skid steer loader is tailored to enhance productivity in projects demanding compact footprint and precise control.

Technical Features and Measurable Specifications
This skid steer loader incorporates a robust 24.4 kW engine delivering enhanced power output for demanding tasks. With an operating weight of 1400 kg and a bucket capacity of 0.15 m3, the unit can exert a maximum lifting force of 400 kg and lifting power of 375 kg, facilitating efficient loading and handling of varied materials. Its speed reaches up to 6 km/h while the four-wheel-drive system ensures reliable traction on uneven or slippery surfaces. The 800 mm width and 817 mm wheelbase optimize stability and access through narrow passages. Additionally, features like an external oil outlet and removable rear guard plate simplify maintenance, aligning with typical skid loader manufacturer standards for serviceability.

Industry Applications and Operational Value
In industrial, construction, and landscaping sectors, the DSL30 mini skid steer loader stands out by enabling effective material transfer and earthmoving in restricted environments. Its compatibility with quick-change attachments supports various site operations including grading, lifting, and loading. This versatility meets the operational demands of infrastructure maintenance, forestry, and small-scale excavation projects. Equipped by trusted skid steer loader manufacturers, the machine facilitates integration within workflow systems by minimizing downtime and maximizing utility in spatially challenging conditions. It also supports training objectives through its dual operation modes, enhancing personnel proficiency in skid loader operation.

Product Advantages

Structural and System Design Benefits
The DIG-DOG DSL30’s structural design prioritizes compactness without sacrificing functionality, a hallmark of recognized mini loader manufacturers. Its modular frame supports quick attachment changes, maximizing operational flexibility. The walk-behind configuration is complemented by ergonomic control layout, ensuring intuitive handling in confined spaces. The four-wheel-drive system design facilitates superior traction across diverse terrain types, while accessible maintenance points such as the external oil outlet and removable rear guard optimize uptime. Overall, the engineering adapts the skid loader concept to a more versatile and easily serviceable platform.

Performance and Usability Enhancements
Performance-wise, the mini skid steer loader delivers consistent lifting capacity and controlled power suited for precision tasks. The dual operation modes provide adjustable control responsiveness catering to both novice and experienced operators. Its 1400 kg operating weight balances stability with portability, enabling transit through tight entrances. The four-wheel-drive system enhances maneuverability on rough terrain, ensuring task continuity. From the perspective of user value, ease of maintenance reduces total cost of ownership, while the compatibility with a wide range of attachments augments job-site productivity, making it a valuable asset for professional users requiring dependable compact equipment.

Use Scenarios

Application in Confined Construction and Landscaping Sites
In construction and landscaping environments characterized by limited accessibility, the DIG-DOG DSL30 excels as a compact skid loader solution. Its narrow 800 mm width enables passage through tight gates and pathways typical of urban or residential projects. The machine’s lifting precision aids in material positioning and earthmoving within constrained areas. The four-wheel-drive system delivers necessary traction on uneven ground often encountered in such sites. Integration with existing workflows is supported by its rapid attachment interchange capability, allowing operators to switch between grading blades and buckets efficiently, optimizing job cycles and reducing downtime on site.

Role in Facility Maintenance and Small-Scale Material Handling
For industrial facilities and small-scale yard operations, this mini skid steer loader provides versatile material handling and transport capabilities. Its compact design accommodates operations inside warehouses or service yards, where maneuvering larger equipment is impractical. The ergonomic walk-behind operation streamlines material transfer tasks, enhancing operator precision and safety. Moreover, its design complies with typical site safety and maintenance protocols, with easy access to service points enabling quick inspections and repairs. The machine integrates smoothly into facility maintenance schedules, improving operational efficiency and asset longevity through reliable performance.

Walk-behind Mini Skid Steers For Sale | Skid Loader

Walk-behind Mini Skid Steers For Sale | Skid Loader

Item	DSL30
Operating weight	1400kg
Max lifting Force(kg)	400 Kg
Bucket capacity	0.15 m3
Max lifting power	375 Kg
speed	6Km/h
Rated power	24.4KW+5%
Rotating speed（rpm）	2800
Noise（Db）	≤95
Hydraulic pressure（Mpa）	20
Max working height（A）	2355 mm
Max pin height （B）	2088 mm
Max dump height（C）	1942 mm
The highest point discharge distance（D）	464mm
Bucket swing angle（β）	43°
Bucket unloading angle（γ）	30°
Opening-closing angle（θ）	37°
Angle of departure（α）	24°
Total height （H）	1479mm
The height from the ground（F）	195mm
Wheelbase （G）	817mm
No bucket length（J）	195 mm
Total width （W）	1029mm
Bucket width （K）	1150mm
Total length（L）（with bucket）	2438 mm
Turning radius (R)	1492 mm

DSL30 Overview

DIG-DOG DSL30 Walk Behind Skid Steer is an multi-purpose construction engineering machine with a compact body that is easy to handle. It can be quickly and easily fitted with various attachments to perform a range of tasks. It is widely used in gardens, factories, construction sites, recycling facilities, gardens, roads, building sites, farms, and other industrial sectors.

DSL30 Features & Benefits

DIG-DOG DSL30 walk behind skid steer loader is easy to operate, with a handle that facilitates walking, lifting, and somersault movements. It also comes with various forms of foot pedals, making operation safer and more convenient. Additionally, it has servo and standard dual modes of operation.

The engine is a internationally renowned brand, stable and reliable, with quality warranty. It features a plunger pump motor that operates smoothly. The four-wheel drive design adapts to various environments.

The mini skid steer is easy to maintain, with an oil square oil outlet located outside the car body, making air filter, oil, machine filter, and spark plug replacements convenient. The rear guard plate is easy to take down, and the upper cover can be opened.It offers a variety of tire and track modes for selection, providing stronger adaptability.

The mini skid steer is narrower, only 800 mm wide, allowing it to pass through strips. It also has large fuel tanks and lifts. It can greatly simplify manual work, improving efficiency.

DIG-DOG DSL30 walk behind skid steer stands out compared to similar products for having a higher lifting height.
Walk-behind Mini Skid Steers For Sale | Skid Loader

FAQ

What types of tasks can the DIG-DOG DSL30 mini skid steer loader handle?
Our mini skid steer loader is designed for tight-space material handling, grading, lightweight earthmoving, and on-site transfers. Thanks to its compact size and quick attachment changes, it adapts well to construction, landscaping, and maintenance projects requiring precise maneuverability.

Can the DSL30 be customized with different attachments?
Yes, the DSL30 supports a wide range of quick-change attachments. This versatility allows our skid steer loader to perform diverse tasks efficiently, from grading to lifting. We work with you to select or recommend compatible attachments to meet your project’s specific needs.

How do you address maintenance and service accessibility for the DSL30 skid loader?
We prioritize easy maintenance with user-friendly features like external oil outlets, a removable rear guard plate, and an openable upper cover. These design elements simplify routine inspections and servicing, helping reduce downtime and maintain reliable operation of your skid loader.

What support do you provide for logistics and operator training with your skid steer loader?
We assist with logistics planning to integrate our skid loader into your operation smoothly. Additionally, our DSL30 offers dual operation modes to help safely train new operators. Our team is ready to consult on deployment and operator safety for efficient equipment use.
