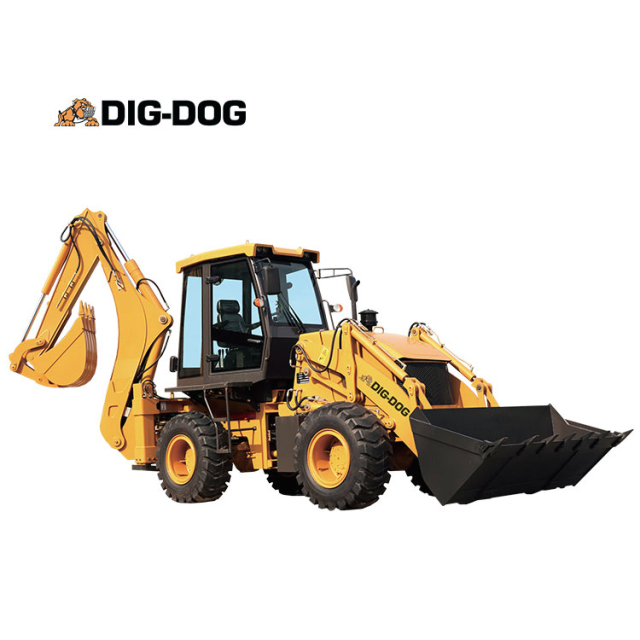

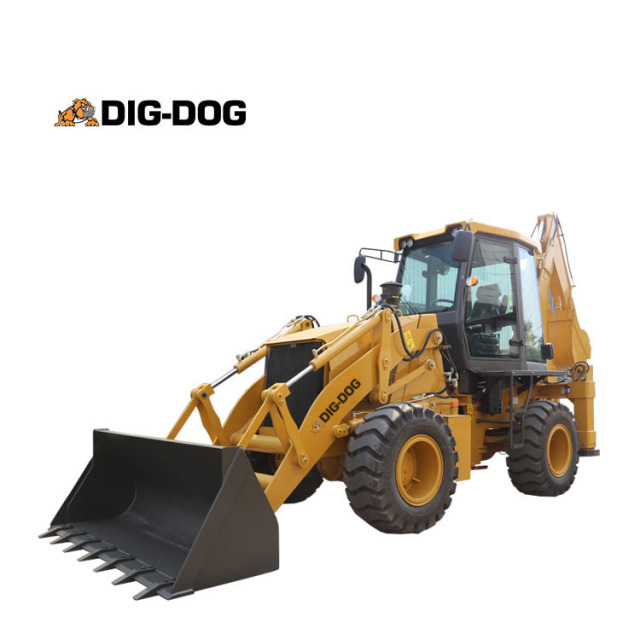

DIG-DOG BL750 Backhoe Loader
|
|||
Overall Operating Weight
|
7640KG
|
Final Reducer
|
Single Stage Final Reducer
|
Transport Dimension
|
Rated Loader of Axle
|
8.5t
|
|
L*W*H
|
6170×2268×3760
|
Transmission System
|
|
Wheel base
|
2370mm
|
Torque Converter
|
|
Min. Ground Clearance
|
300mm
|
Model
|
YJ280
|
Bucket Capacity
|
1.0m3
|
Type
|
Single-stage Three Elements
|
Breakout Force
|
58KN
|
Max. Efficiency
|
84.40%
|
Loading Lifting Capacity
|
2500KG
|
Inlet Pressure
|
1.3Mpa—1.5 Mpa
|
Bucket Dumping Height
|
2770mm
|
Outlet Pressure
|
0.25Mpa—0.3 Mpa
|
Bucket Dumping Distance
|
925mm
|
Cooling Method
|
Oil-cooling Pressure Circulation
|
Digging Depth
|
27mm
|
Gearbox
|
|
Backhoe Capacity
|
0.3m3
|
Type
|
Fixed Shaft Power Transmission
|
Max. Digging Depth
|
4082mm
|
Oil Pressure of Clutch
|
1373Kpa—1569 Kpa
|
Swing Angle of Excavator Grab
|
190°
|
Gears
|
Two Gears Ahead, Two Gears Astern
|
Max. Pulling Force
|
65KN
|
Max.Speed
|
22Km/h
|
Engine
|
Tyre
|
||
Model
|
YUCHAI YC4A105Z-T20
|
Model
|
16/70-20
|
Type
|
In Line Direct injection Four-Stroke and Injection Combustion Chamber
|
Pressure of Front wheel
|
0.22 Mpa
|
Cylinder-Inside Diameter*Stroke
|
4-108×132
|
Pressure of Back Wheel
|
0.22 Mpa
|
Rated Power
|
75KW
|
Brake System
|
|
Rated Speed
|
2200r/min
|
Service Brake
|
Air Over Oil Caliper Brake
|
Min. Fuel Consumption
|
≤230g/km.h
|
External Type
|
|
Max.Torque
|
≥400N.M/1500r/min
|
Self-regulation
|
|
Displacement
|
4.8L
|
Self-balance
|
|
Steering System
|
Emergency Brake
|
Operation Power Implementing brake
|
|
Model of Steering Device
|
BZZ5-250
|
Manual Operation Power Terminating Brake
|
|
Steering Angle
|
±36 o
|
Hydraulic System
|
|
Min. turning radius
|
5018mm
|
Digging Power of Excavator Grab
|
60KN
|
Pressure of the system
|
14Mpa
|
Digging Power of Dipper
|
31KN
|
Axle
|
Bucket Lifting Time
|
5.4S
|
|
Manufacturer
|
Feicheng Axle Factory
|
Bucket Lowering Time
|
3.1S
|
Main Transmission Type
|
Double Reduction
|
Bucket Discharge Time
|
2.0S
|
